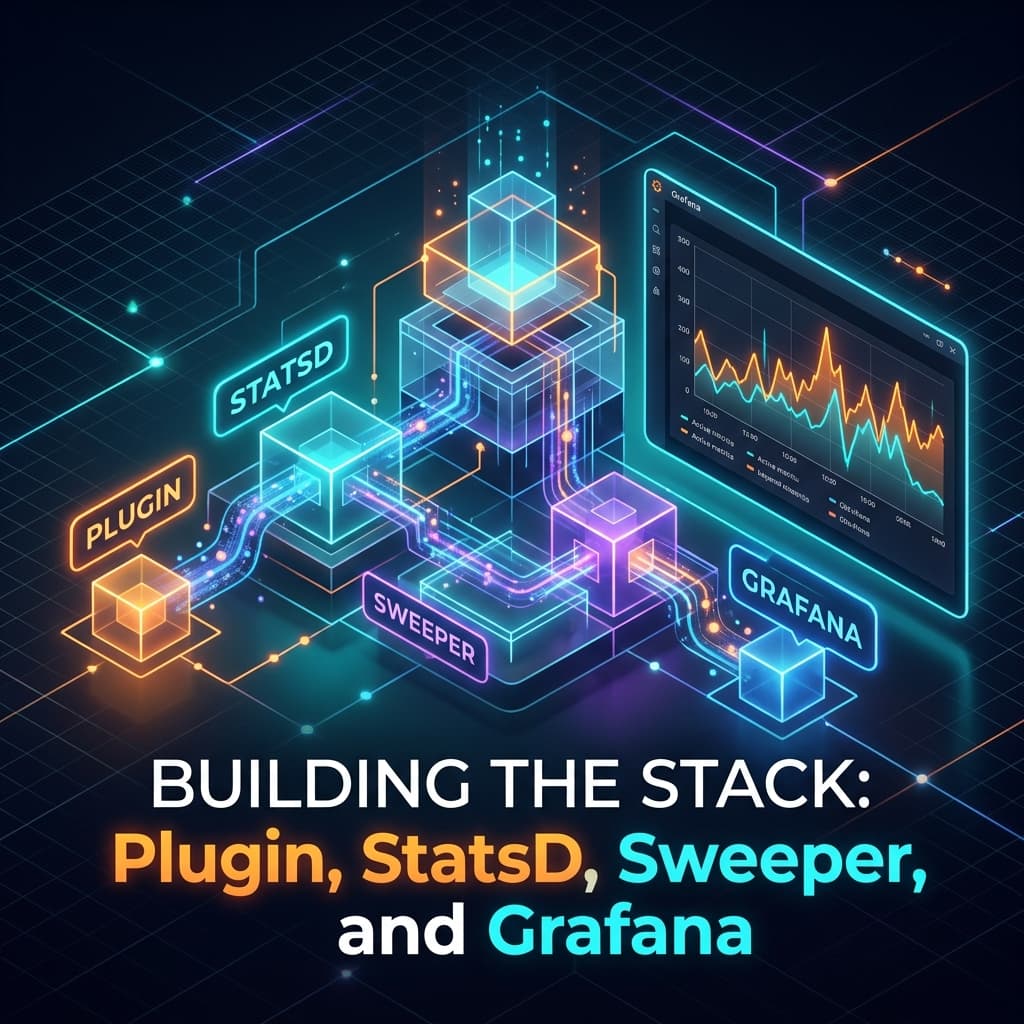

Building the Stack — Plugin, StatsD, Sweeper, and Grafana

(Part 4 of the Batch Workloads Observability series. Read Part 3: Metric Granularity for the metric classification rationale.)

(Clone the companion repo: TheStaffBlueprint/batch-workloads-observability for the full docker-compose stack, plugins, and Sweeper DAG.)

In Parts 2 and 3, we established the architecture and metric classification: StatsD for aggregate counts, Pushgateway with Gauges for per-run state, and structured logs/OLAP for audit data. Today, we're building all of it.

Step 1: StatsD — Zero Custom Code

Add these lines to your Airflow environment:

[metrics]
statsd_on = True
statsd_host = statsd-exporter
statsd_port = 8125
statsd_prefix = airflow

Airflow natively pushes ti.finish counts, dag.duration timers, and dozens of other operational metrics over UDP. The StatsD exporter aggregates these and exposes them to Prometheus as clean, low-cardinality metrics. See statsd_mapping.yml in the companion repo for the full mapping configuration.

Step 2: The Pushgateway Plugin — V1 to V2 Evolution

The V1 Anti-Pattern (Two Compounding Mistakes)

Mistake 1 — No run isolation. V1 used a coarse grouping key (dag_id + task_id) with no run_id. Every execution of the same task overwrites the previous one. If 10 parallel tasks push at the same time, only the last survives. This is a race condition caused by the grouping key design, not the metric type — it would happen with Gauges too.

# V1 ANTI-PATTERN: Coarse key — no run_id
def _get_task_group_key(self, ti):
    return {
        'dag_id': ti.dag_id,
        'task_id': ti.task_id,
        'instance': self.instance_name,
    }

Mistake 2 — Using Counters for state. Even with run_id added, Counters are semantically wrong. If a task fails then retries successfully, both failure_total = 1 and success_total = 1 persist. Failure count is permanently inflated. Both Counters and Gauges with run_id produce identical cardinality.

The V2 Fix (Two Corrections)

# airflow/plugins/v2_gauge_fix_plugin.py
from prometheus_client import CollectorRegistry, Gauge, pushadd_to_gateway

class PushgatewayV2GaugeListeners:
    def __init__(self):
        self.instance_name = os.environ.get("AIRFLOW_VAR_PROMETHEUS_INSTANCE_NAME", "airflow-local")

    def _push(self, registry, job_name, group_key):
        # THIS is the key: Read from environment to avoid SQLAlchemy session detachment
        enabled_str = os.environ.get("AIRFLOW_VAR_PROMETHEUS_METRICS_ENABLED", "true").lower()
        push_gateway_url = os.environ.get("AIRFLOW_VAR_PUSHGATEWAY_URL", "http://host.docker.internal:9091")
        if enabled_str != "true" or not push_gateway_url:
            return
        try:
            pushadd_to_gateway(push_gateway_url, job=job_name, grouping_key=group_key, registry=registry)
        except Exception as e:
            logging.error(f"Failed to push metric: {e}")

The SQLAlchemy Trap

We use os.environ.get instead of Airflow's Variable.get(). When the Scheduler fires a listener hook, it often does so outside an active database session. Using Variable.get() throws a DetachedInstanceError and crashes the scheduler loop.

Fix 1 — Run Isolation via Grouping Key

    def _get_task_group_key(self, ti):
        key = {
            'dag_id': ti.dag_id,
            'task_id': ti.task_id,
            'run_id': ti.run_id,        # Isolates each DAG run
            'instance': self.instance_name,
        }
        map_index = getattr(ti, 'map_index', -1)
        if map_index >= 0:
            key['map_index'] = str(map_index)  # Isolates mapped tasks
        return key

Fix 2 — Gauges for Semantic Correctness

Gauges represent state as an absolute value. On retry, the Gauge overwrites from -1 to 1 — only the final state is visible:

    @hookimpl
    def on_task_instance_success(self, previous_state: TaskInstanceState, task_instance: TaskInstance):
        registry = CollectorRegistry()
        group_key = self._get_task_group_key(task_instance)

        g = Gauge('task_status', 'Task state snapshot (1=success, -1=failed)', registry=registry)
        g.set(1)  # 1 = success (overwrites any previous -1 from a failed attempt)

        self._push(registry, group_key)

Step 3: The Sweeper DAG — Preventing OOM Crashes

Pushgateway has no native TTL. Every run_id creates a metric group held in memory forever. The Sweeper runs every 24 hours and deletes anything older than the threshold:

# airflow/dags/pushgateway_sweeper.py
from datetime import datetime, timezone
import requests
from airflow.decorators import dag, task

@task
def clean_stale_metrics(max_age_mins: int):
    gateway_url = "http://host.docker.internal:9091"
    response = requests.get(f"{gateway_url}/api/v1/metrics")
    data = response.json()
    now = datetime.now(timezone.utc).timestamp()
    max_age_secs = max_age_mins * 60

    for group in data.get('data', []):
        push_time = group.get('push_time_seconds', {}).get('metrics', [{}])[0].get('value')
        if now - float(push_time) > max_age_secs:
            labels = group.get('labels', {})
            delete_url = f"{gateway_url}/metrics/job/{labels.pop('job', 'unknown_job')}"
            for k, v in labels.items():
                if v:
                    delete_url += f"/{k}/{v}"
            requests.delete(delete_url)

@dag(schedule="0 0 * * *", start_date=datetime(2026, 1, 1), catchup=False)
def pushgateway_sweeper():
    clean_stale_metrics(max_age_mins=1440)

sweeper_dag = pushgateway_sweeper()

The Sweeper is mandatory for V2 deployments with run_id in the grouping key.

Step 4: V3 — The Production-Grade Plugin

V2 works for small systems, but at scale (thousands+ runs/day), run_id in the grouping key causes severe series churn. V3 removes run_id entirely, giving you bounded cardinality with no Sweeper:

# airflow/plugins/v3_low_cardinality_plugin.py
class PushgatewayV3LowCardinalityListeners:
    def _get_task_group_key(self, ti):
        """LOW CARDINALITY: No run_id. Each (dag, task) pair has exactly one slot.
        Latest execution overwrites previous — shows current state only."""
        return {
            'dag_id': ti.dag_id,
            'task_id': ti.task_id,
            'instance': self.instance_name,
        }

The key difference: V3's grouping key has no run_id. Each task has exactly one slot in the Pushgateway. The latest execution overwrites the previous one. This means:

• ✅ Bounded cardinality — no series churn, no Sweeper needed

• ✅ Retry safe — Gauge overwrites reflect final state

• ✅ Fast dashboards — Prometheus queries scan a small, fixed set of series

• ❌ No per-run history — only the latest execution is visible

For per-run history, emit structured JSON logs to an OLAP engine or log aggregator. This is covered in Part 5.

The Plugin Evolution

The V3 Production Dashboard

We've added a dedicated dashboard for the V3 plugin: airflow_v3_low_cardinality.json.

Unlike the V2 dashboard, this one:

• Removes the run_id filter: Since metrics are no longer partitioned by run, the dashboard shows the global fleet state.

• Focuses on "Latest State": The panels show the status of the most recent execution of every task.

• Improved Performance: Because the number of series is bounded, the dashboard loads instantly even with thousands of historic runs in Prometheus.

Key Takeaways

• Use os.environ.get() in Airflow listener plugins, never Variable.get().

• V1 had two problems: missing run_id (race condition) AND Counters (semantic mismatch).

• V2 fixes both but creates high cardinality — acceptable for small systems, not production-grade at scale.

• V3 is the production recommendation — removes run_id, bounded cardinality, no Sweeper.

• 🚨 Golden Rule: NEVER inject run_id into Prometheus at scale. Per-run data belongs in OLAP or structured logs.

References

• TheStaffBlueprint/batch-workloads-observability (Companion Repo)

• Apache Airflow Listener Plugin Documentation
